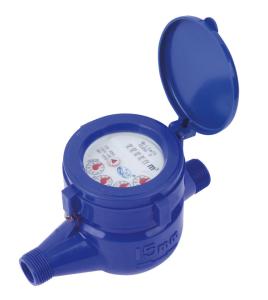

ABS Rotary Vane Wheel Water Meter Multi-jet Dry-Dial Cold LXSG-15EP

ABS Rotary Vane Wheel Water Meter Multi-jet Dry Cold LXSG-15EP

Description:

ABS Rotary Vane Wheel Water Meter Multi-jet Dry Cold LXSG-15EP

Quick Detail:
1.Type name: Multi-jet ,rotary vane wheel dry dial type

2.Model No.: LXSG-15EP

3.Standard :ISO 4064 Class B

4.Material: ABS

Product features:
Multi-jet , rotary vane wheel type

Vacuum sealed register ensures the dial keep the reading clear in a long term service

Especially suit to the area of lower quality water

Universal use .Easy for interchange & maintenance.

Main Technical data

Maximum permissible error:
In the lower zone from Qmin inclusive up to but excluding Qt is ±5%
In the upper zone from Qt inclusive up to and including Qs is ±2%

Working Condition:
Water temperature:0℃≤t≤50℃ (For cold water meter)
Water pressure: ≤10bar (16bar on request)

Installation requirements:

1. Meter should be installed in horizontal position with the register face upwards
2. Pipe line must be flushed before installation
3. The meter should be constantly full of water during operation

Specifications:

Competitive Advantage:
Stable quality
Reasonable price
1 year warranty
100% tested
On time delivery

domestic water meter

portable  water meter

ABS Rotary Vane Wheel Water Meter Multi-jet Dry-Dial Cold LXSG-15EP Images
