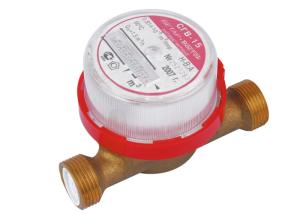

15mm Vane Wheel Rotary Domestic Water Meter For Hot Water , Single Jet
Quick Detail:
1. Type name: Single-jet brass water meter
2. Model No.: LXSC-15D
3. Standard :ISO 4064 Class B
4. Vacuum sealed register
5. Feature : Dry type, anti-magnetic
6. For hot water
Description:
Single-jet Dry-dial Type Hot Water Meter DN15mm
Product features:
Single-jet ,Rotary vane wheel type
Dry-dial, Magnetic drive ,Resistance to exterior magnet interference
Selected high quality materials for steady and easily for reading
Vacuum sealed register
Installation requirements:
- Meter should be installed in horizontal position with the register face upwards
- Pipe line must be flushed before installation
- The meter should be constantly full of water during operation
Main Technical data
|
Meter Size DN (mm)
|
Class
|
Qs
Overload
Flow
|
Qp
Nominal
Flow
|
Qt
Transitional
Flow
|
Qmin
Min
Flow
|
Min
Reading
|
Max
Reading
|
|
m³/h
|
L/h
|
m³
|
|
15
|
A
|
3
|
1.5
|
150
|
60
|
0.0001
|
99999
|
|
B
|
120
|
30
|
|
20
|
A
|
5
|
1.8
|
250
|
100
|
0.0001
|
99999
|
|
B
|
200
|
50
|
|
25
|
A
|
7
|
3.5
|
350
|
140
|
0.0001
|
99999
|
|
B
|
280
|
70
|
INDICATING ERROR
At low zone is ±5% from minimum flow rate (qmin) to transitional flow rate (qt) exclusive boundary
At high zone is ±2% from transitional flow rate (qt) to overload flow rate (qs) (Hot water meter ±3%)
Working Condition:
Water temperature:0℃≤t≤90℃ (For hot water meter)
Water pressure: ≤10bar (16bar on request)
Specifications:
|
Type
|
size
|
L
|
B
|
H
|
Connection thread
|
Weight
|
|
LSXC-15D
|
15
|
110
|
73
|
88
|
G3/4B
|
0.70
|
|
LXSC-20D
|
20
|
130
|
73
|
88
|
G1B
|
0.80
|
|
LXSC-25D
|
25
|
160
|
73
|
92
|
G1 1/4B
|
1.47
|
Application:
This range of water meter is used to measure the total quantity of cold(hot) potable water which consumed in household or a resident unit, passing through the pipeline.
Competitive Advantage:
100% tested
Reasonable price with good quality
Long time guarantee
On time delivery
