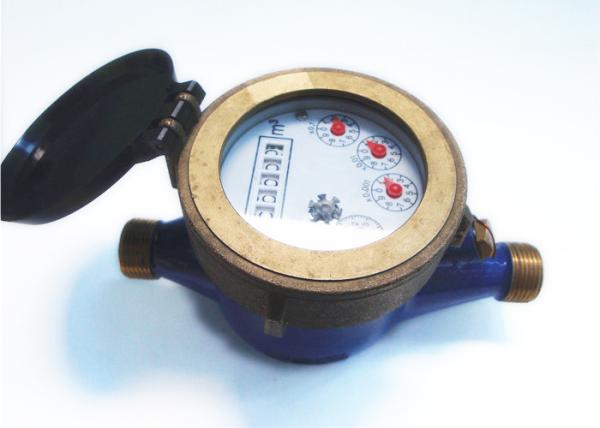

House Horizontal Piston Water Meter Brass ISO4064 Class B
Quick Detail:
1. Type name: Horizontal piston water meter
2. Model No.: LXH-15
3. Standard :ISO 4064 Class B or Class C
4. Material: Brass, Cu at around 57%
5. Feature :Dry type ,four needles and five numbers
6. Horizontal installation
Description:
Dry Type Piston Water Meter / Horizontal House Water Meter LXH-15
Product features:
• Adopting horizontal rotary piston principle of measurement
• Accurate measurement register separated from water to ensure a clear reading in long-term service
• Material: brass
• Selected high quality materials for steady & reliable characteristic and good looking
APPLICATION:
This range of water meter is used to measure the total quantity of cold potable water which consumed in household or a resident unit, passing through the pipeline
Installation requirements:
- Meter should be installed in horizontal position with the register face upwards
- Pipe line must be flushed before installation
- The meter should be constantly full of water during operation
Main Technical data
|
Meter Size DN (mm)
|
Q3/Q1
|
Qs
Overload
Flow
|
Qp
Nominal
Flow
|
Qt
Transitional
Flow
|
Qmin
Min
Flow
|
Starting
Flow
|
Min
Reading
|
Max
Reading
|
|
m³/h
|
L/h
|
m³
|
|
15
|
R160
|
3.125
|
2.5
|
25
|
15.6
|
5
|
0.00002
|
99999
|
|
20
|
R160
|
5
|
4
|
40
|
25
|
7
|
0.00002
|
99999
|
Maximum permissible error:
In the lower zone from Qmin inclusive up to but excluding Qt is ±5%
In the upper zone from Qt inclusive up to and including Qs is ±2%
Working Condition:
Water temperature:0℃≤t≤50℃ (For cold water meter)
Water pressure: ≤10bar
Specifications:
|
Type
|
size
|
L
|
B
|
H
|
Connection thread
|
Weight
|
|
LXH-15
|
15
|
165
|
97
|
112
|
G3/4B
|
1.4
|
|
LXH-20
|
20
|
190
|
99
|
126
|
G1B
|
1.8
|
Competitive Advantage:
Reasonable price with good quality
Long time guarantee
100% tested
On time delivery
