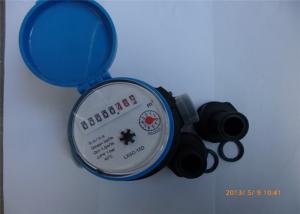

Dry Dial Cold Plastic Water Meters Anti Magnetic Single Jet Light Weight
Quick Detail:
1. Type name: Single-jet plastic water meter
2. Model No.: LXSC-15P
3. Standard :ISO 4064 Class B
4. Material: Nylon plastic
5. Feature : Dry type, anti-magnetic
6. Cold water meter
Description:
Plastic Body Single-jet Dry-dial Type Cold Water Meter LXSC-15D~LXSC-20D
Product features:
Single-jet ,Rotary vane wheel type
Dry-dial, Magnetic drive ,Resistance to exterior magnet interference
Material: nylon plastic
Vacuum sealed register ensures the dial kept free from fog and keep the reading clear in a long term service
Compliance with standard :technical data conforms to ISO4064 Class B standard
Selected high quality materials for steady and easily for reading
The register can be turned discretion and easy reading
Small in size, light weight and small at starting flow rate
Plastic or brass body water meter and remote reading transmission system and the pulse constant :10L/Pulse ,100L/Pluse ,1000L/Pulse for option
Installation requirements:
- Meter should be installed in horizontal position with the register face upwards
- Pipe line must be flushed before installation
- The meter should be constantly full of water during operation
Main Technical data
|
Meter Size DN (mm)
|
Class
|
Qs Overload Flow
|
Qp Nominal Flow
|
Qt Transitional Flow
|
Qmin Min Flow
|
Min Reading
|
Max Reading
|
|
m³/h
|
L/h
|
m³
|
|
15
|
A
|
3
|
1.5
|
150
|
60
|
0.0001
|
99999
|
|
B
|
120
|
30
|
|
20
|
A
|
5
|
1.8
|
250
|
100
|
0.0001
|
99999
|
|
B
|
200
|
50
|
|
25
|
A
|
7
|
3.5
|
350
|
140
|
0.0001
|
99999
|
|
B
|
280
|
70
|
INDICATING ERROR
At low zone is ±5% from minimum flow rate (qmin) to transitional flow rate (qt) exclusive boundary
At high zone is ±2% from transitional flow rate (qt) to overload flow rate (qs) (Hot water meter ±3%)
Working Condition:
Water temperature:0℃≤t≤50℃ (For cold water meter)
Water pressure: ≤10bar (16bar on request)
Specifications:
|
Type
|
size
|
L
Length
|
B
Width
|
H
Height
|
Connection thread
|
Weight
kg
|
|
LSXC-15D
|
15
|
80/ 110
|
80
|
80
|
G3/4B
|
0.3
|
|
LXSC-20D
|
20
|
130
|
80
|
88
|
G1B
|
0.4
|
Application:
This range of water meter is used to measure the total quantity of cold(hot) potable water which consumed in household or a resident unit, passing through the pipeline.
Competitive Advantage:
Reasonable price with good quality
Long time guarantee
100% tested
On time delivery
