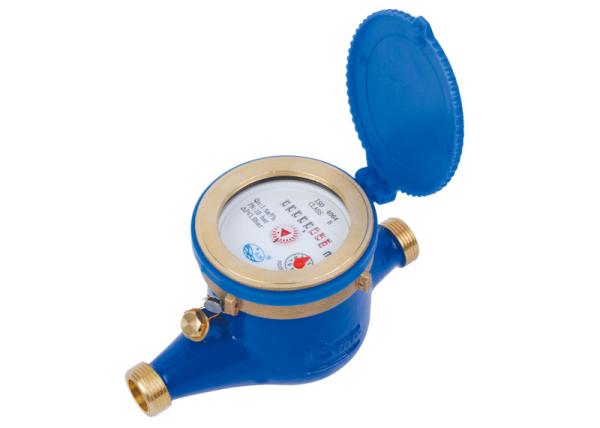

Brass Cold Residential Water Meters 7 Digits SNI Standard
Quick Detail:
1. Type name: Multi-jet dry-dial
2. Model No.: LXSG-15E
3. Standard :ISO 4064 Class B (R80)
4. Material: Brass
5. Feature :SNI standard design for Indonesia market
6. 7 digits with 1 pointer
Description:
Multi-jet Dry-dial Type Cold Water Meter LXSG-15E~LXSG-50E
Product features:
Multi-jet ,Rotary vane wheel type
Dry-dial, Magnetic drive ,Resistance to exterior magnet interference
Material: Brass
SNI design
Vacuum sealed register ensures the dial kept free from fog and keep the reading clear in a long term service
Measuring accuracy conform to ISO4064 Class B standard
Maximum permissible error:
In the lower zone from Qmin inclusive up to but excluding Qt is ±5%
In the upper zone from Qt inclusive up to and including Qs is ±2%
Main Technical data
|
Meter Size DN (mm)
|
Class
|
Qs
Overload
Flow
|
Qp
Nominal
Flow
|
Qt
Transitional
Flow
|
Qmin
Min
Flow
|
Starting
Flow
|
Min
Reading
|
Max
Reading
|
|
m³/h
|
L/h
|
m³
|
|
15
|
B
|
3
|
1.5
|
120
|
30
|
14
|
0.0001
|
99999
|
|
20
|
B
|
5
|
2.5
|
200
|
50
|
16
|
0.0001
|
99999
|
|
25
|
B
|
7
|
3.5
|
280
|
70
|
19
|
0.0001
|
99999
|
|
32
|
B
|
12
|
6.0
|
480
|
120
|
25
|
0.0001
|
99999
|
|
40
|
B
|
20
|
10
|
800
|
200
|
56
|
0.0001
|
99999
|
|
50
|
B
|
30
|
15
|
3000
|
450
|
70
|
0.0001
|
99999
|
Working Condition:
Water temperature:0℃≤t≤50℃ (For cold water meter)
Water pressure: ≤10bar (16bar on request)
Specifications:
|
Type
|
size
|
L
|
B
|
H
|
Connection thread
|
|
LSXG-15E
|
15
|
165
|
98
|
104
|
G3/4B
|
Installation requirements:
- Meter should be installed in horizontal position with the register face upwards
- Pipe line must be flushed before installation
- The meter should be constantly full of water during operation
Competitive Advantage:
Reasonable price with good quality
Long time guarantee
100% tested
On time delivery
